10 Zone Speaker Selector public adress system full set

Brand Name : FTD

Model Number : FTD-110S

Place of Origin : CHINA

MOQ : 2pieces

Price : USD108-110

Supply Ability : 1000cottons

Delivery Time : 5-8work days

Packaging Details : 483(W)*350(D) * 89(H) mm

warranty : 5years

Description : 10 Zone Speaker Selector

Group A Input : 70V/100V, Aux Signal

Group B Input : 70V/100V, EMC and Aux Signal

Zone : CH1~CH10

Power supply : AC220-240V/50-60Hz

Dimension : 483(W)*350(D) * 89(H) mm

Channel Exchange : 500W, Aux Signal

Gross weight : 8.1kg

Net weight : 6.4kg

Contact Now

Features:

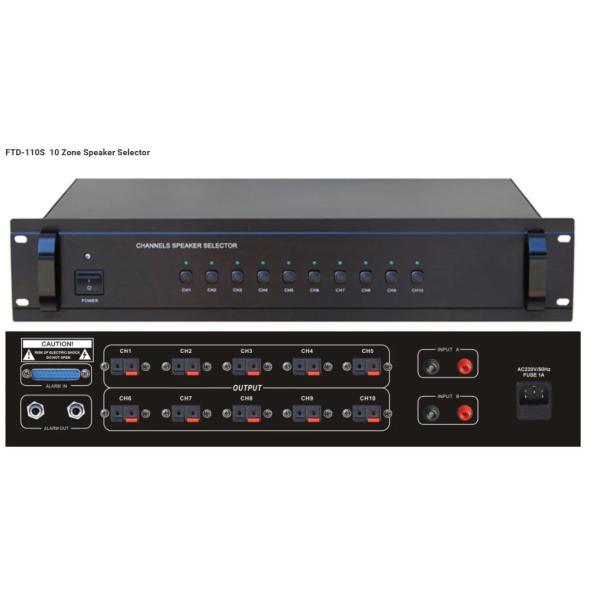

Public Address System 10 Zone Speaker Selector.
19" rack mount type with mounting handheld.
Main equipment of multiple zone PA sound system.
10 zone capacity, expandable up to 128 units by cascaded more units together.
Each 10 zone with working indicator and selective buttons.
With all zone on/off button for easy operation.
4 line inputs and 4 EMC inputs, built-in 5W monitor speaker.
Capacity to divide one amplifier into 10 zone for separate control.
Black finish of aluminum front panel.
Power consumption of 25W.
Dimension size of 484×350×88mm.
Net weight of 6.9kg.
AC 220V-230V, 50-60Hz operation.
Comes with 5 years quality warranty.

Model	FTD-110S
Description	10 Zone Speaker Selector
Group A Input	70V/100V, Aux Signal
Group B Input	70V/100V, EMC and Aux Signal
Zone	CH1~CH10
Power Load	Total: 1KW; Each zone: 100 W
Channel Exchange	500W, Aux Signal
Contact Input	(0V) short circuit contact input,(ALARM IN)
Contact Output	(0V) short circuit contact two outputs,(ALARM OUT)
Wire Cable	(3×0.75 mm2)×1.5 meters
Power Supply	AC 220V±10%50-60Hz
Power Consumption	10~15W
Dimension	483(W)×350(D) × 89(H) mm
Packaging	520(W)×435(D) ×185(H)mm
Net Weight	6.4kg
Gross Weight	8.1kg

exihibition

FAQ:

1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
